ARGO 15

Triton ATMs

One of the most flexible ATMs on the market, the ARGO 15 can be configured to hold up to 8,000 notes and has many dispenser options. With a sleek, compact design, it can fit into tight spaces and can be customized with a variety of communications, printer and lock options.

Triton is known for our dedication to security. All our models run on Windows CE™, an embedded platform that Triton has tailored for added protection from fraud, malware and jackpotting. Other security measures include a camera, Macing, SSL/TLS and a firewall. For more information on Triton security click here.

Available with a UL291 certified business hour or Level 1 safe, the ARGO 15 comes with an electronic lock or a Kaba Mas® Cencon lock option. ARGO 15 is ADA, EMV, and PCI 5 compliant with optional Triton Key Management. Also optional, anti-skim card reader, NFC, camera and more.

For the past 40 years, Triton has set the standard for manufacturing innovative cash dispensing solutions. Triton’s affordable, high-quality ATMs are built in the United States and are easy to upgrade and service.

Specifications

Compliance/Upgrades
EMV Standard
PCI 5 Standard
ADA Standard
X3 Standard
NFC Option
Anti-Skim
Card Reader
Option
Screen Size 15” (381 mm)
Touch Screen Yes
Screen Graphic Sizes Full-Screen Ad 1020 x 764 – Format jpg, gif, bmp, png
Welcome Ad 500 x 500 – Format jpg, gif, bmp, png
Transaction Ad 1020 x 485 – Format jpg, gif, bmp, png
Header Ad 1020 x 120 – Format jpg, gif, bmp, png
UL291 Certification Business Hours
Level 1 Option (SDD/NMD Only)
Mainboard

X3, Microsoft Windows Compact 7™

Printer 60mm Standard
80mm Option
Printer Presenter Option – 80mm Only

Keypad

ADA Compliant
PCI 5 Compliant
Triton Key Management Option

Card Reader

Dip EMV standard, optional Anti-Skim Dip EMV,
NFC, Motorized EMV

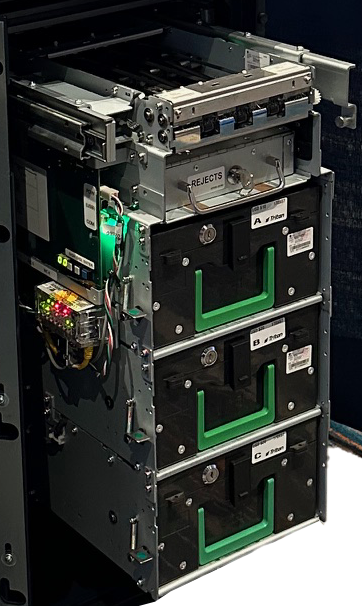

Cassettes 1 to 4
Lock Dial Standard
Electronic Option
Kaba Mas Cencon Option
Communication TCP/IP with SSL Option
Dial Modem Option
Camera Optional
Topper Customizable Backlit LED Integrated
High Topper option
Additional Features LED Indicators
Triton Connect option
Door Switch option
High-Security Fascia and
Control Panel Lock option
Dimensions/Weights

57.2 H x 18.3 W x 19.6 D (in) Shallow
1453 H x 465 W x 498 D (mm) Shallow
57.2 H x 18.3 W x 25.8 D (in)
1453 H x 465 W x 655 D (mm)
Business Hours Vault
193 lb (87 kg) — 231 lb (104 kg)
Level 1 Vault
615 lb (278 kg) — 655 lb (297 kg)
