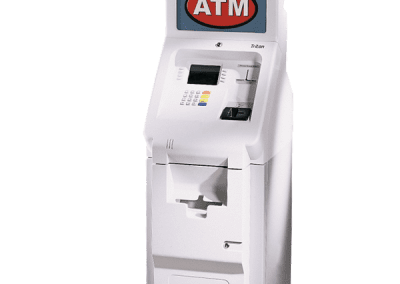

Triton launched the 9600 series in 1997. Considered the workhorse of the industry, thousands of these machines are still in the marketplace more than 10 years later. The machine incorporated a number of ways to help retailers build ATM traffic including an all-new compelling modular design that can easily be upgraded, low and high-visibility signage and a color screen with advertising capabilities. Manufactured from 1997-2003.
| Technical Specifications | |
| Customer Display | Backlit LCD, gray scale (color optional), 340×240 resolution graphics capable (supports .bmp files) |
| Receipt Printer | Fixed head thermal printer, 12 lines per second print speed, graphic capable, supports bar codes, 60mm wide paper |
| Modem | 2400 baud standard, 14,400 baud optional |
| Journal Data Storage | Standard electronic journal, optional floppy disk storage and program update capability |
| Operating Specifications | |
| Temperature | 10-40℃; 50-104℉ |
| Relative Humidity | 20% – 80%, non-condensing |
| Power Requirements | 100-250 VAC, 50-60Hz; 2.4A @ 115 VAC; 2.2A @ 220 VAC |
| Dimensions | |
| Height | 57.5″ – 59″ (range reflects 1.5″ adjustable base) |
| Width | 18″ |
| Depth | 23.5″ |
| Weight | 275 lbs. |
